notification_scheduled


Columns

Column Type Size Nulls Auto Default Children Parents Comments
id BIGINT 19 √ null
scheduled_notification_attachment.notification_id FK406CC36547BEFA5E R
scheduled_notification_owner.notification_id FKC651A73147BEFA5E R
scheduled_notification_sent_action.notification_id FK_sn_sent_action_notification R
version BIGINT 19 null
body LONGTEXT 2147483647 √ null
description VARCHAR 255 √ null
exclude_addresses LONGTEXT 2147483647 √ null
frequency VARCHAR 255 null
name VARCHAR 100 null
sql_query LONGTEXT 2147483647 null
subject VARCHAR 255 √ null
to_roles VARCHAR 255 √ null
cc_addresses TEXT 65535 √ null
cc_roles VARCHAR 255 √ null
cron_date VARCHAR 32 √ null
cron_days VARCHAR 32 √ null
cron_hours VARCHAR 32 √ null
cron_week VARCHAR 32 √ null
note LONGTEXT 2147483647 √ null
to_addresses TEXT 65535 √ null
column_one_link VARCHAR 255 √ null
send_as_excel BIT 1 √ null
from VARCHAR 100 √ null
iteration INT 10 √ null
site_id INT 10 √ null
bcc_addresses TEXT 65535 √ null
bcc_roles VARCHAR 255 √ null
complete_on_send_id INT 10 √ null
milestone_tasks.task_id FK5D8D5A591EE1B683 R
query_addresses LONGTEXT 2147483647 √ null
send_with_zero_records BIT 1 null
footer_id BIGINT 19 √ null
notification_template.id FK_ctg40om1eemknmfvieoe4quc9 R
header_id BIGINT 19 √ null
notification_template.id FK_6ehdtpn8lajfu5bgssnpxu1o3 R
bcc_columns VARCHAR 64 √ null
cc_columns VARCHAR 64 √ null
from_column VARCHAR 64 √ null
group_by VARCHAR 255 √ null
message_type VARCHAR 255 √ null
to_columns VARCHAR 64 √ null
last_scheduled_run DATETIME 19 √ null
cron_month VARCHAR 32 √ null
id_requirement INT 10 null

Indexes

Constraint Name Type Sort Column(s)
PRIMARY Primary key Asc id
FK5D8D5A591EE1B683 Performance Asc complete_on_send_id
FK_6ehdtpn8lajfu5bgssnpxu1o3 Performance Asc header_id
FK_ctg40om1eemknmfvieoe4quc9 Performance Asc footer_id

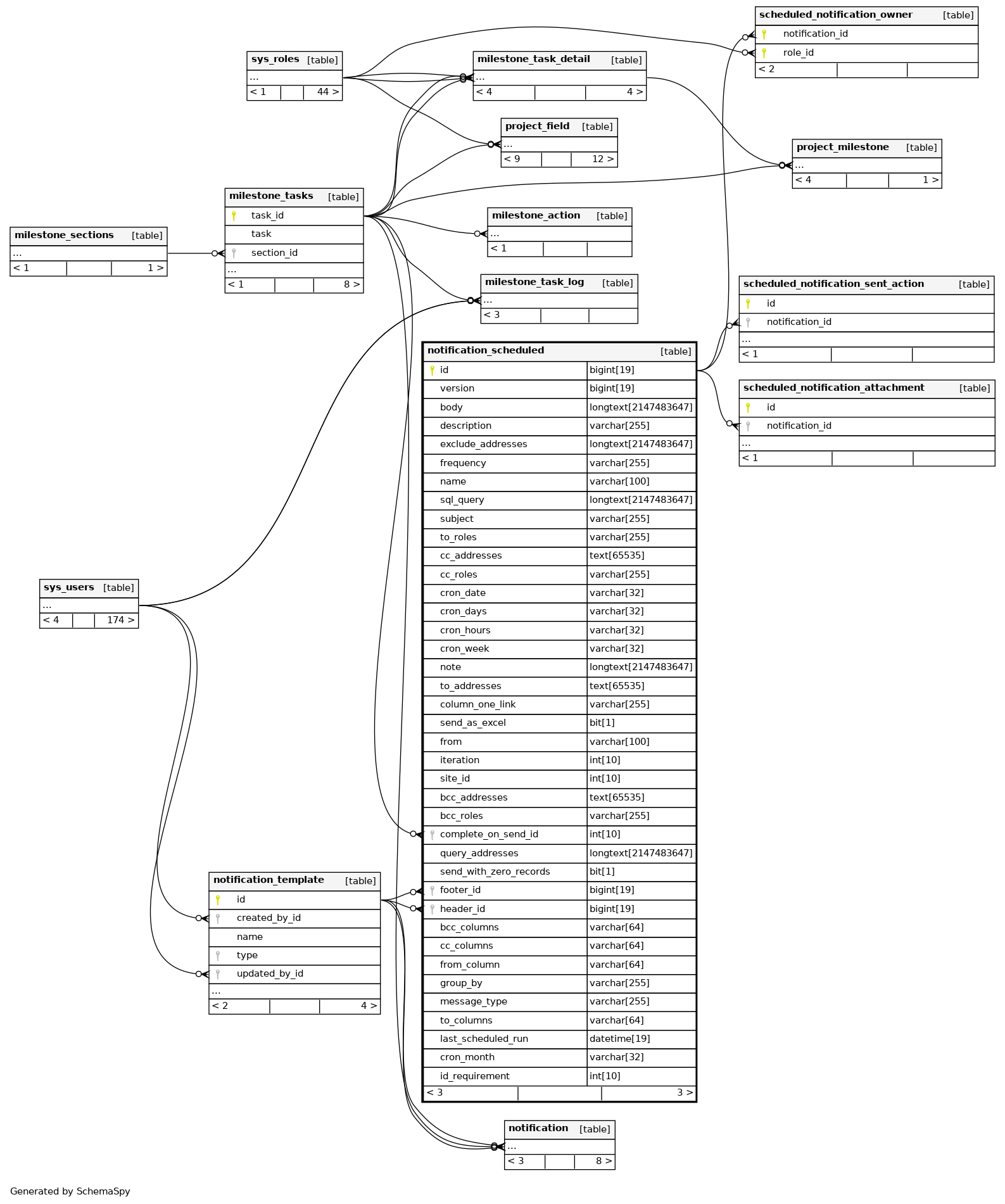

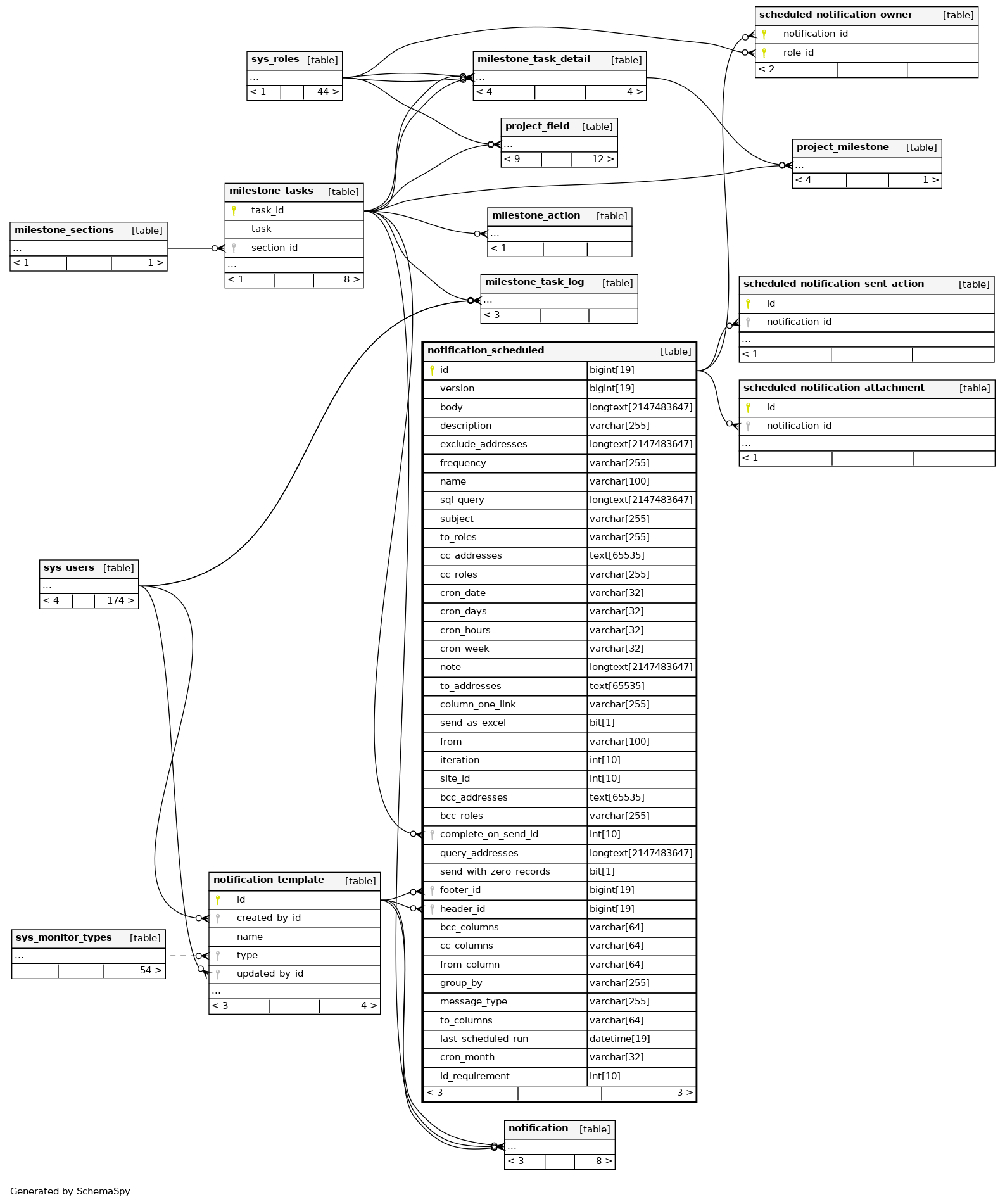

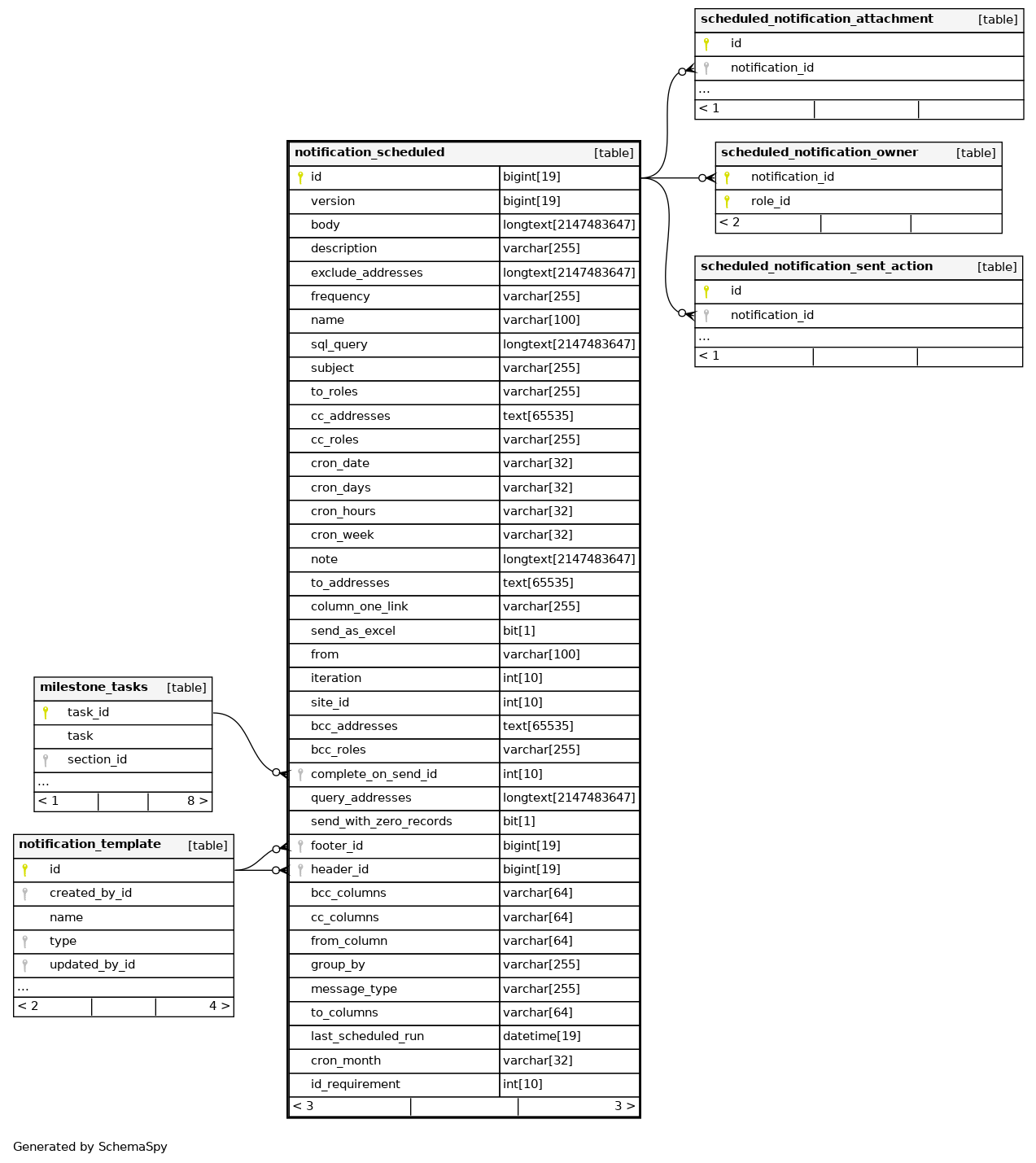

Relationships

Close relationships within degrees of separation
