workflow_log


Columns

Column Type Size Nulls Auto Default Children Parents Comments
id BIGINT 19 √ null
workflow.current_id FK21BD7BF2C557739 R
version BIGINT 19 0
action VARCHAR 30 √ null
actor_id INT 10 √ null
sys_users.user_id FK5D08B2C4CF2AFC39 R
assigned DATETIME 19 √ null
completed DATETIME 19 √ null
error VARCHAR 255 √ null
file_name VARCHAR 256 √ null
iteration INT 10 null
notes LONGTEXT 2147483647 √ null
owner_id BIGINT 19 √ null
workflow_participant.id FK5D08B2C43B7237AE R
round INT 10 null
status VARCHAR 30 null
timeout INT 10 0
triggered BIT 1 null
workflow_id BIGINT 19 null
workflow.id FK5D08B2C4ABF90BA7 R
due DATETIME 19 √ null
proxy_user_id INT 10 √ null
sys_users.user_id FK5D08B2C4A1B485D2 R
owner_role_id INT 10 √ null
sys_roles.role_id FK_7ao1gk2nqshmg6yoql8v8se84 R

Indexes

Constraint Name Type Sort Column(s)
PRIMARY Primary key Asc id
FK5D08B2C43B7237AE Performance Asc owner_id
FK5D08B2C4A1B485D2 Performance Asc proxy_user_id
FK5D08B2C4ABF90BA7 Performance Asc workflow_id
FK5D08B2C4CF2AFC39 Performance Asc actor_id
FK_7ao1gk2nqshmg6yoql8v8se84 Performance Asc owner_role_id
triggered Performance Asc/Asc/Asc/Asc triggered + action + workflow_id + iteration

Relationships

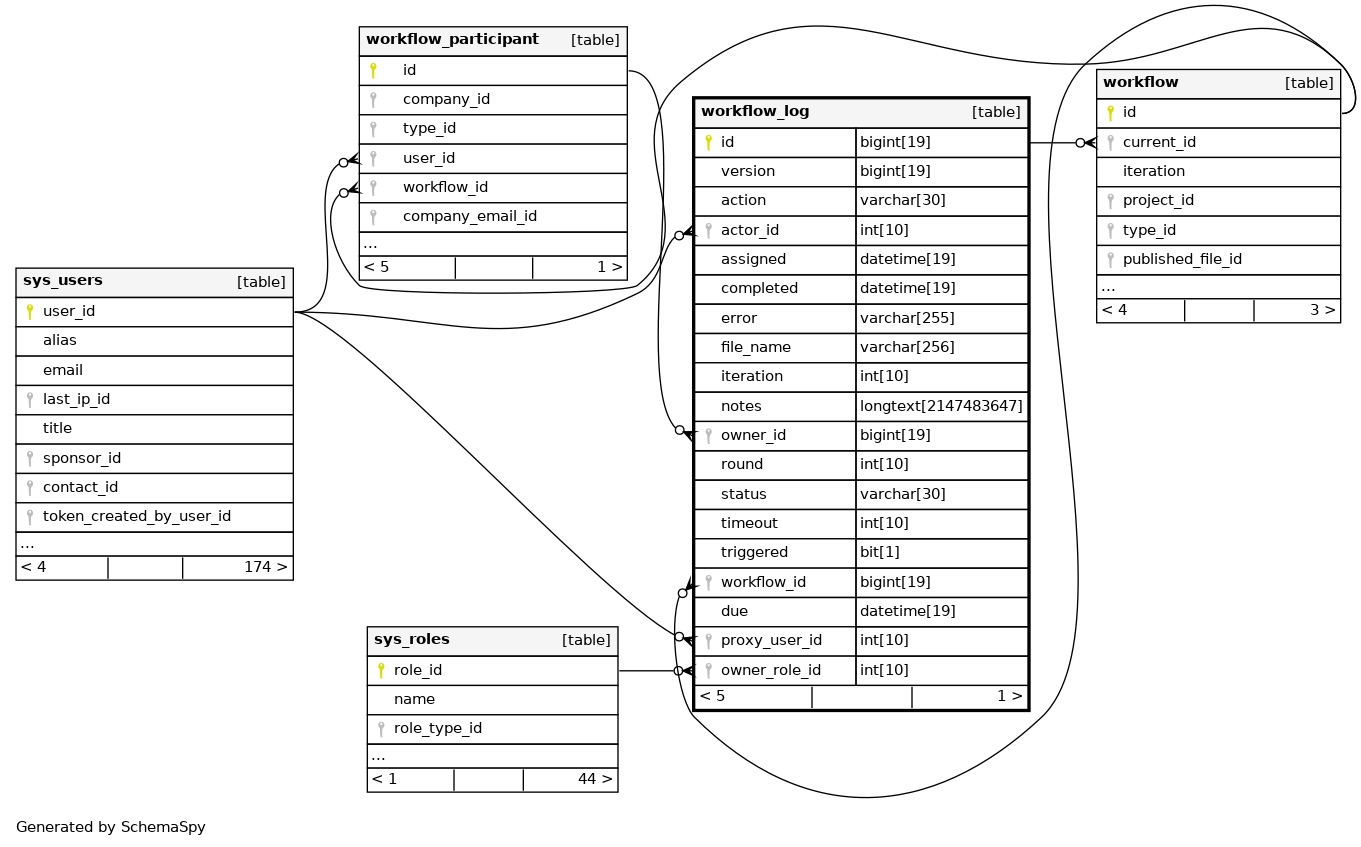

Close relationships within degrees of separation
