intake


Columns

Column Type Size Nulls Auto Default Children Parents Comments
id BIGINT 19 √ null
intake_attachment.ticket_id fk_intake_attachment_intake R
intake_consultation.ticket_id fk_intake_consult_ticket R
intake_field_value.ticket_id FK_intake_field_value_ticket R
intake_log.intake_id FK_intakelogticket R
intake_note.intake_id FK_34alba0toa7g119ruo69628sx R
version BIGINT 19 null
assigned_id INT 10 √ null
sys_users.user_id FKB971272C99605DC0 R
business_impact LONGTEXT 2147483647 √ null
completion_date DATETIME 19 √ null
priority_id BIGINT 19 null
intake_priority.priority_id FKB971272C1ADBBF86 R
request_date DATETIME 19 null
request_desc LONGTEXT 2147483647 √ null
request_type_id BIGINT 19 null
intake_request_type.request_type_id FKB971272C9D32BD2D R
requested_due_date DATE 10 √ null
requestor VARCHAR 50 null
requestor_email VARCHAR 50 null
requestor_phone VARCHAR 20 √ null
root_cause_id BIGINT 19 √ null
intake_cause.cause_id FKB971272C5D9C9F0B R
status_id BIGINT 19 null
intake_status.status_id FKB971272CD86B17C6 R
subject VARCHAR 100 null
system_affected_id BIGINT 19 null
intake_system.system_id FKB971272C62D97231 R
token VARCHAR 16 null
assigned_date DATETIME 19 √ null
follow_up_date DATETIME 19 √ null
model_user_email_address VARCHAR 50 √ null
model_user_id VARCHAR 11 √ null
model_user_name VARCHAR 50 √ null
cc_email_addresses LONGTEXT 2147483647 √ null
projected_completion_date DATETIME 19 √ null
type_confirmed BIT 1 √ null
assigned_role_id INT 10 √ null
sys_roles.role_id FK_2i5nyx5396ma3p3gq3rp9i8h3 R
assigned_type INT 10 √ null
sys_monitor_types.type Implied Constraint R
last_requestor_reminder DATETIME 19 √ null
last_status_change DATETIME 19 √ null
referral_email VARCHAR 50 √ null
workstream_id BIGINT 19 √ null
intake_workstream.id fk_intake_workstream R
sla_pause_date DATETIME 19 √ null
sla_start_date DATETIME 19 √ null
sla_active_days INT 10 √ null
last_follow_up_reminder DATETIME 19 √ null
last_completion_date_reminder DATETIME 19 √ null

Indexes

Constraint Name Type Sort Column(s)
PRIMARY Primary key Asc id
FK_2i5nyx5396ma3p3gq3rp9i8h3 Performance Asc assigned_role_id
fk_intake_workstream_idx Performance Asc workstream_id
FKB971272C1ADBBF86 Performance Asc priority_id
FKB971272C5D9C9F0B Performance Asc root_cause_id
FKB971272C62D97231 Performance Asc system_affected_id
FKB971272C99605DC0 Performance Asc assigned_id
FKB971272C9D32BD2D Performance Asc request_type_id
FKB971272CD86B17C6 Performance Asc status_id
IX_intake_token Must be unique Asc token

Relationships

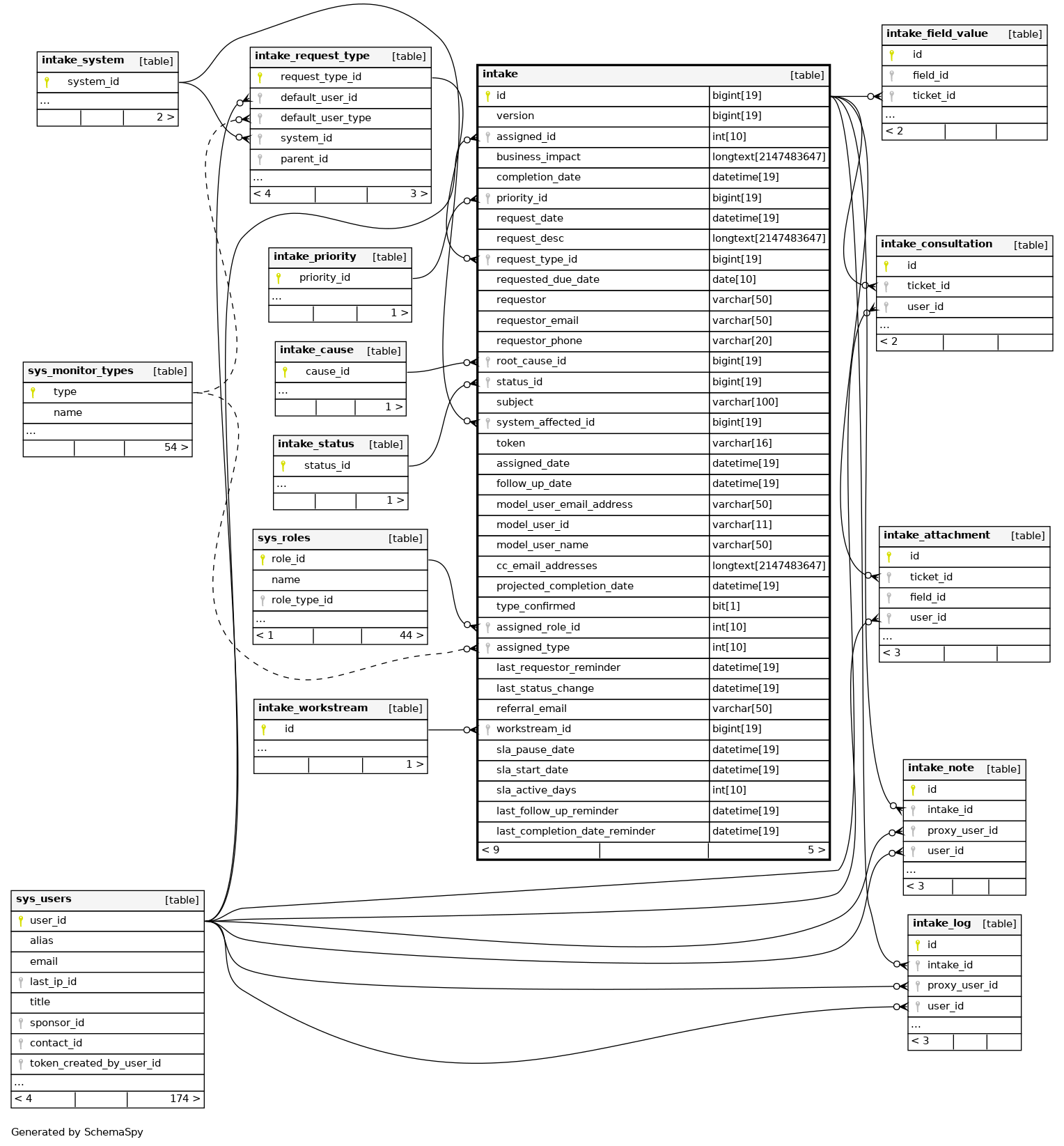

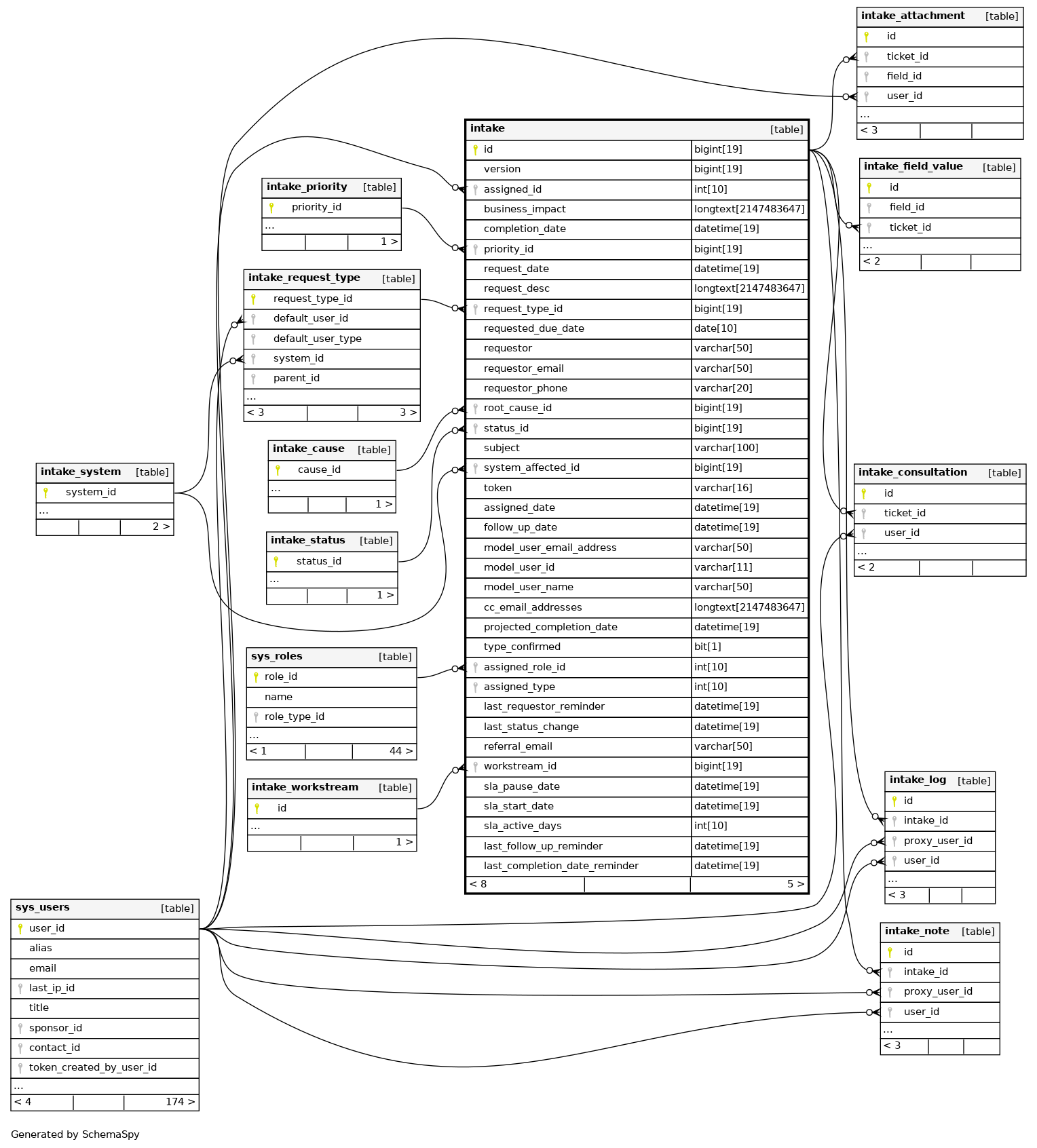

Close relationships within degrees of separation
